Stories of wood-framed roof collapses, starting from easy agricultural roofs to complicated roofs in industrial buildings, are frequent in North America.
These collapses typically are prompted, or contributed to, by controllable components like lack of upkeep, chemical assaults, moisture assaults, or insufficient supplies, design or development. Ignoring Negligent dealing with of controllable components can sharply improve the dimensions and scope of insurance-related damages.
Pitched wood-framed roofs are generally used for residential and agricultural constructions, whereas industrial constructions often use flat wood-framed roofs. Each sorts typically use prefabricated wooden roof trusses, which strongly resist vertical masses however are much less effectively suited to resisting lateral masses.
More and more, wood-framed roof collapses occur throughout vital weather-related occasions, reminiscent of windstorms and heavy snowfalls. If masses method the capability of the trusses or bracing system, the roof construction will start to deform. It doesn’t take far more load to set off failure or collapse.
Properly-designed and braced constructions are considerably extra immune to collapse – for instance, collapse zones are localized within the case of snow overloading, as opposed to an entire roof and/or construction collapse in poorly braced constructions.
Just a little prevention…
In lots of circumstances of truss failure, investigations discover preventable contributing components, together with:
- Lack of communication, which may result in catastrophe. Design, manufacture and set up of metal-plated roof trusses contain a number of events, together with engineers, truss producers, contractors and native authorities. Failure of those events to speak may result in omission of short-term roof bracing throughout development – a typical and harmful observe that can lead to full collapse of the construction. The partitions and roof should be adequately braced throughout development or the entire construction can collapse with out warning.
- Design or set up errors reminiscent of failure to contemplate snow drift masses or useless masses from heavy rooftop items put in on the roof. Continuously, rooftop items are moved from their design location by mechanical contractors responding to website situations with out informing the engineers. This leads to massive useless masses being positioned in roof areas that aren’t bolstered to bear them, which can ultimately result in collapse.
- Mishandling of trusses throughout set up, which may hurt their integrity. Inexperienced contractors might select to make use of gear that’s conveniently accessible on-site, reminiscent of a telehandler or forklift, to elevate trusses with out utilizing spreader bars. Doing that might injury the trusses, inflicting slip or deformation of the plates. Trusses might not present indicators of misery till they’re totally loaded. It could actually typically take years earlier than gathered injury leads to a collapse as a result of a heavy snowstorm.
- Manufacturing course of errors, reminiscent of altering the truss backside chords to a lesser grade of Machine Stress-Rated lumber. This might trigger the roof to be critically poor in capability and place it susceptible to collapse. Financial realities imply wooden trusses are usually designed near the capability limits of the lumber grades and chosen truss plate sizes. So, producers should respect the minimal lumber grades and plate sizes and grades indicated within the truss drawings.
- Improper roof upkeep, reminiscent of failure to make use of snow rakes to take away massive snow accumulations. Plus, warning is required when raking snow to forestall injury to the roof floor, which may speed up deterioration of the trusses if injury permits moisture. Because the snow continues to build up in a roof valley over time, and after a number of freeze-thaw cycles improve the density of the snow, the roof might collapse from overloading.
- Constructing envelope set up errors, reminiscent of insufficient set up of underlayment, insufficient set up of roof flashings, or having uncovered nails on the shingles. This could let water into the attic and lead to decomposition of the sheathing and trusses. Ongoing decay may hurt the integrity of the trusses by lowering their web capability. And it’s an even bigger downside when accompanied by poor attic air flow, which may result in widespread decomposition of roof trusses and an total discount of truss capability that will improve the chance of collapse.
- Corrosion of truss plates and nails, which is extra widespread in agricultural and industrial buildings. In Canada, farm and agricultural buildings reminiscent of livestock barns and driving arenas, aren’t required to be designed by engineers. Farm buildings are ruled by the 1995 Nationwide Farm Constructing Code, which relaxes many necessities of the Nationwide Constructing Code reminiscent of design masses in order that farmers can shortly assemble and use constructions. Many buy ready-to-install commonplace truss packages with out participating an engineer to correctly design the trusses or researching the required design specs for his or her purposes.
Yannick Roy is a regional lead in J.S. Held’s Forensic Structure and Engineering observe, and Wei Chiet Thong is a senior engineer in J.S. Held’s Forensic Structure and Engineering observe.

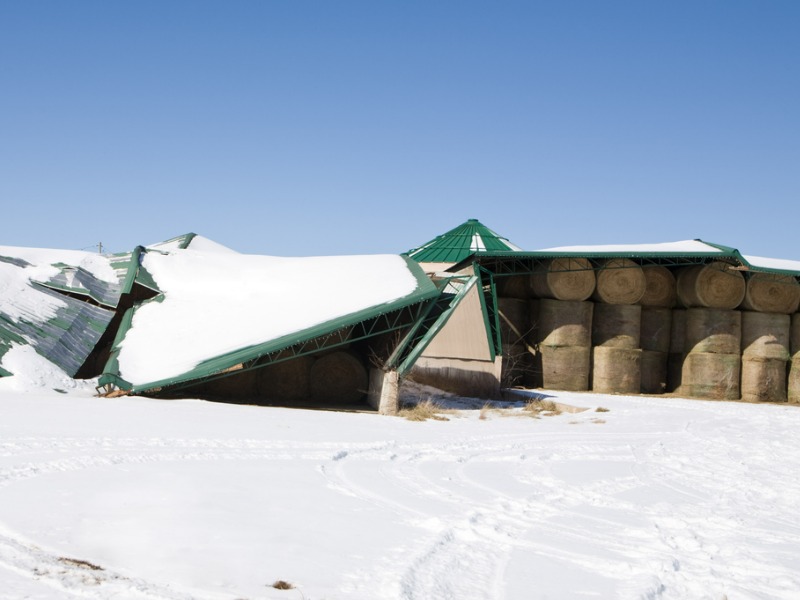

Function picture courtesy of iStock.com/Bryngelzon
